1. Overview
GYTC8S Figure‑8 fiber optic cable is a self-supporting aerial cable solution specifically designed for outdoor environments. With a distinctive figure‑8 profile formed by bonding a steel messenger wire and an optical fiber core, this cable eliminates the need for external suspension hardware during installation.
Jiqian Fiber Optic Cable, as a dedicated manufacturer and technology-driven company, specializes in the research, development, and production of GYTC8S cables. We offer reliable, high-performance solutions tailored to the demanding needs of modern fiber-optic networks.

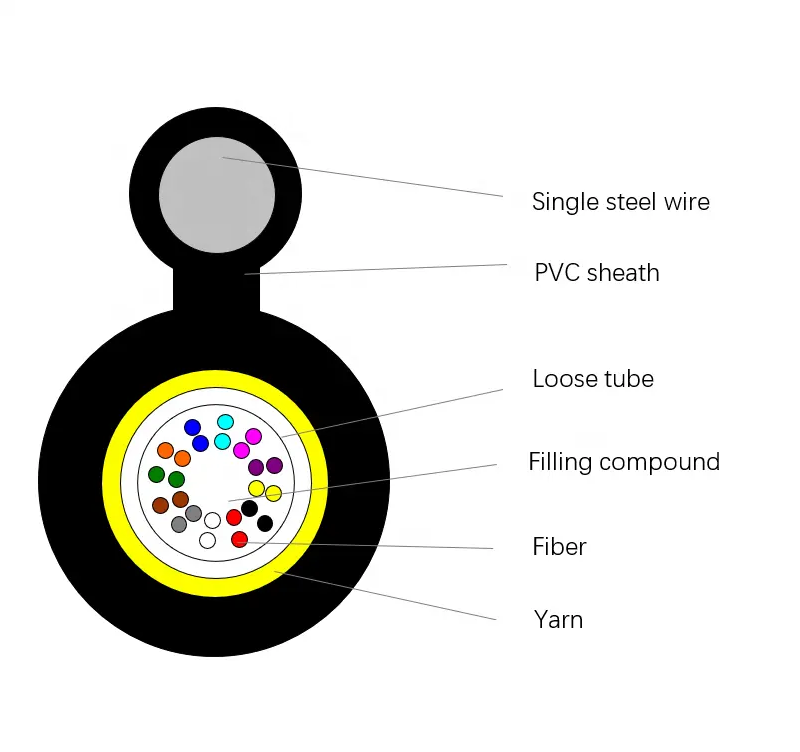

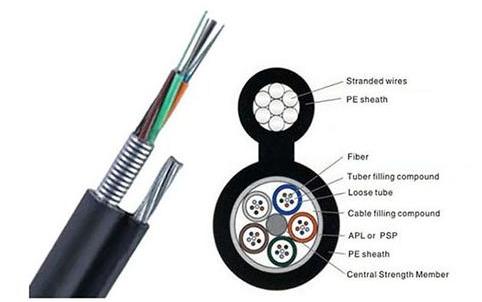

2. Structural Features
- Fiber Core in Loose Tube: Optical fibers are housed within loose tubes made from high-strength PBT. These tubes are filled with water-blocking gel to provide long-term stability and protect against moisture.
- Water-Blocking Elements: The cable incorporates water-swellable yarn and tape for enhanced waterproofing and environmental resilience.
- Corrugated Steel Tape Armor: A layer of PSP (polyethylene-coated steel tape) shields the internal fibers from crushing forces and mechanical stress.
- Steel Messenger Wire: A galvanized stranded steel wire is pre-attached in the figure‑8 structure, enabling self-supporting aerial deployment.
- PE Outer Sheath: The outer jacket is made of UV-resistant polyethylene, ensuring long-term outdoor durability.

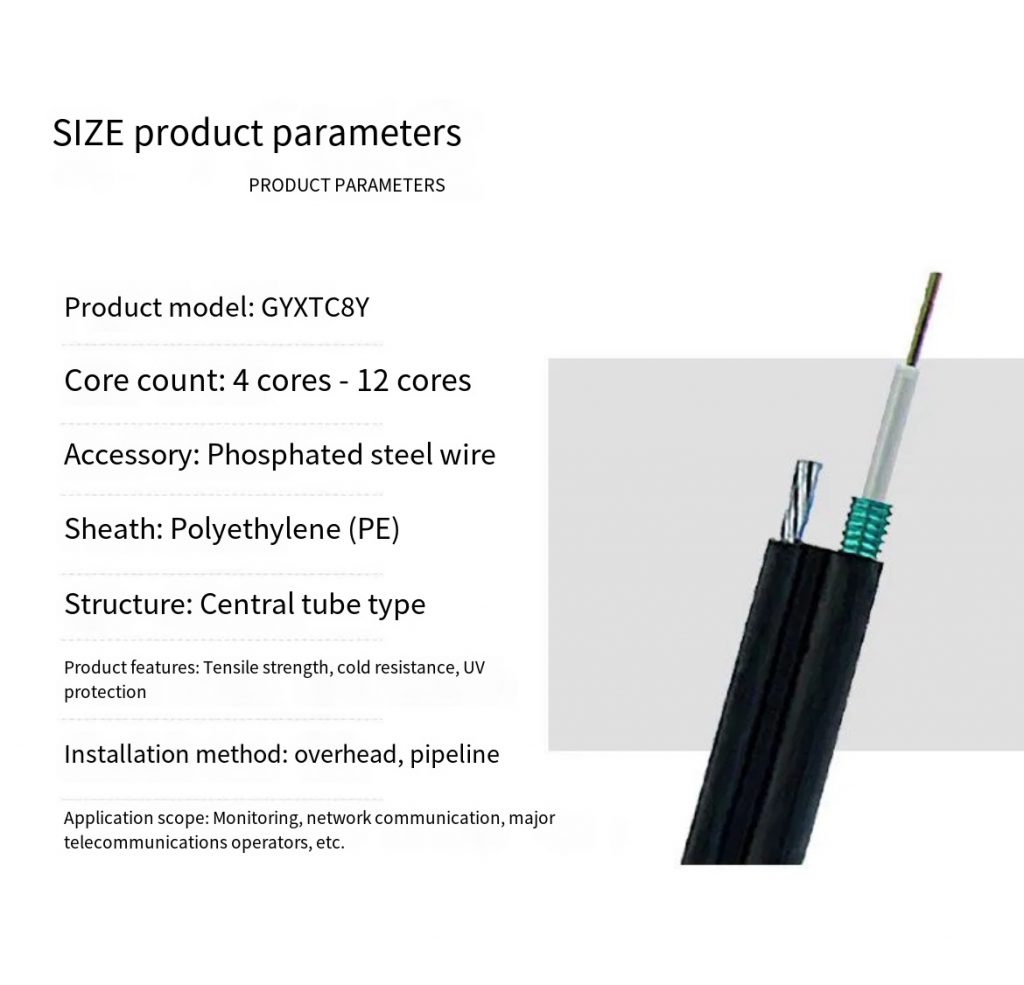

3. Key Technical Parameters
- Fiber Count: 2 to 144 cores (higher counts available upon request).
- Cable Diameter: Approx. 9–12 mm.
- Tensile Strength: Up to 3000 N (short-term); >1000 N (long-term).
- Crush Resistance: Typically 1000–2000 N/100 mm.
- Bend Radius: ≥15x cable diameter (static); ≥20x diameter (dynamic).
- Temperature Range: –40 °C to +70 °C.
- Attenuation: ≤0.36 dB/km at 1310 nm; ≤0.22 dB/km at 1550 nm.
As part of our quality assurance process, Jiqian Fiber Optic Cable rigorously tests each production batch to ensure compliance with both IEC and ITU-T standards.
4. Advantages of GYTC8S Cable
- Self-Supporting Design: The integrated messenger wire supports direct aerial installation without the need for additional support structures.
- Excellent Waterproofing: Multi-layer water-blocking components prevent water ingress and extend cable lifespan.
- Durable Outer Protection: PE jacket and armored steel tape provide outstanding protection against UV, rodents, and mechanical damage.
- Cost-Effective Deployment: Ideal for long-span aerial routes, minimizing installation labor and materials.
- Custom Options from Jiqian: We support a range of configurations—fiber type, core count, jacket thickness, and steel wire strength—to meet your project’s specific needs.
5. Applications
GYTC8S cable is widely used in:
- Telecom backbone aerial networks
- Rural broadband expansion
- Industrial monitoring and communication lines
- Power grid communication (non-electrified areas)
Jiqian Fiber Optic Cable serves clients in telecom, energy, transportation, and smart city infrastructure. With flexible manufacturing capabilities, we support both standard and customized project requirements.
6. Installation Recommendations
- Use certified suspension clamps to secure the messenger wire to poles.
- Maintain recommended span lengths based on cable load rating.
- Ensure adequate clearance from power lines or trees.
- Avoid excessive bending and follow proper tensioning protocols.
Our technical team at Jiqian provides on-site or remote support for installation guidance and post-sales service to ensure your deployment is efficient and reliable.
7. Why Choose Jiqian Fiber Optic Cable?
At Jiqian Fiber Optic Cable, we combine industry experience with continuous innovation. From material sourcing to precision manufacturing and global logistics, our GYTC8S cables reflect strict quality control and performance reliability.
Whether you’re expanding rural fiber networks, building municipal communication lines, or upgrading industrial monitoring systems, we deliver dependable fiber cable solutions that meet your timeline, specifications, and budget.
Contact Jiqian Fiber Optic Cable today to learn more about our GYTC8S product line or to request samples, technical data sheets, or custom quotations. We are committed to helping you build faster, smarter, and more durable fiber networks.
