Underground Duct GYTS/GYTA Fiber Optic Cable – 48/96/144 Core, Single Mode, Armored
Product Overview

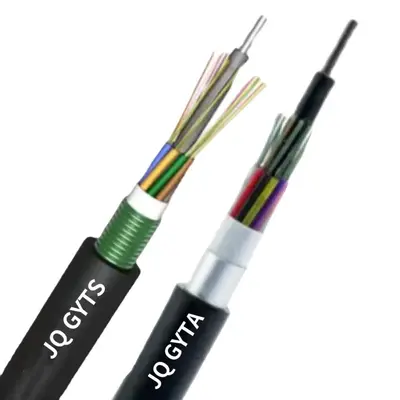

The GYTS fiber optic cable is engineered for outdoor use in duct and aerial installations. It supports both single-mode and multimode fibers, with options from 2 to 144 cores. Compared to GYTA, GYTS offers enhanced protection through its steel tape armor. The cable structure provides excellent tensile strength, temperature resistance, and long-term durability. Loose tubes are filled with gel to protect the fibers, while the outer PE sheath resists UV rays and moisture.
Key Features
-
Central steel strength member with filler rods for added stability
-
Steel tape armor enhances crush and impact resistance
-
PE outer jacket resists UV, moisture, and environmental stress
Application Scenarios
-
Outdoor telecom distribution networks
-
Suitable for duct and aerial (pole-mounted) installations
-
Ideal for long-distance data transmission and LAN connectivity
Details Images
Description:

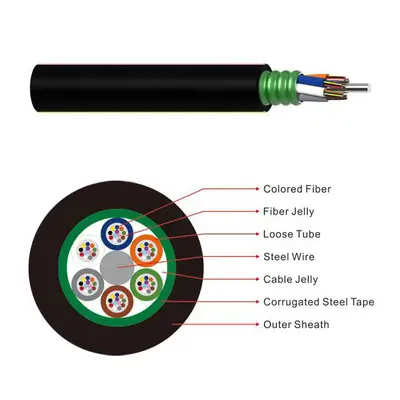

In GYTS cables, single-mode or multimode fibers are placed in loose tubes filled with water-blocking gel. These tubes and fillers are stranded around a central strength member to create a compact core. The core is wrapped with a steel tape (PSP) layer and filled with a protective compound for improved water resistance. A tough PE outer sheath completes the structure.
Characterisics
-
A precisely controlled excess fiber length ensures reliable mechanical strength and stable performance under temperature changes. The design protects fiber integrity throughout.
Multiple layers of water-blocking are used to improve moisture resistance:
-
Central steel wire strength member
-
Water-blocking gel in loose tubes
-
Fully filled core to prevent water ingress
Dimensions of Cable Constructions
| Fiber count | Structure | Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) |
Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) |
| 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 80 |
| 6 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 80 |
| 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 80 |
| 12 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 80 |
| 24 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 85 |
| 36 | 1+6 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.7±0.3 | 100 |
| 48 | 1+5 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.7±0.3 | 105 |
| 60 | 1+5 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.7±0.3 | 110 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.6±0.3 | 122 |
| 96 | 1+8 | 12 | 2.2±0.1 | 1.6/3.5 | 1.6 | 12.0±0.3 | 160 |
| 144 | 1+12 | 12 | 2.2±0.1 | 2.0/6.4 | 1.8 | 15.6±0.3 | 240 |
| 216 | 1+6+12 | 12 | 2.2±0.1 | 2.2/2.2 | 1.8 | 16.0±0.3 | 270 |
| 288 | 1+9+15 | 12 | 2.2±0.1 | 2.2/4.3 | 2.0 | 18.2±0.3 | 282 |
There are twelve fiber color code.They are A grade fiber.
All products will have been strictly quality checked in house before packing.
All products will be well packed before shipment.
We are the factory, having quality control.
We privide you factory price.You can save costs, having good quality.
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer’s requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.
Don’t hesitate to contact me. Whatsapp:+86 18122383351
FAQ
-
Are you a factory or trading company?
We are a factory with direct production. -
What is your minimum order quantity (MOQ)?
Our MOQ is 1 kilometer for fiber optic cables. -
Which fiber brands do you use?
We mainly use YOFC, Fiberhome, and other reliable brands. -
Do you accept small orders?
Yes, we welcome small orders, especially for new customer projects. -
What’s your delivery time?
Usually 5–7 days after confirming the order, depending on quantity. -
Can you provide customized products and logos?
Yes, OEM service with custom designs and branding is available. -
What payment methods do you support?
We accept T/T, L/C, and Western Union. A 30% deposit is required, with the balance before shipment.
